Active Directory Delegated Authentication in Oracle Identity Cloud Service

AD Delegated Authentication is a way to synchronise user passwords between an on-premises Microsoft Active Directory enterprise directory structure and Oracle Identity Cloud Service (IDCS). Users can use their AD passwords to sign in to IDCS to access resources and applications protected by Oracle IDCS. We will use Office365 as one of the target applications. Oracle IDCS can provision user into Office365 and keep users synchronised.

The following diagram 1 depicts the scenario:

diagram1

Diagram 1: Logical architecture of scenario

Following are the steps that are taken in order to configure and test the scenario:

This is depicted in the diagram 2 below:

diagram2

Diagram 2: AD Bridge defined in IDCS

  • Step 2: The following diagrams 3 and 4 depicts the users and groups that are defined in the AD domain idcsdemos.com, respectively:diagram3

Diagram 3: Employees group in IDCSGroups in idcsdemos.com domain

diagram4

Diagram 4: Users in IDCSUsers in idcsdemos.com domain

  • Step 3: Configure the AD Bridge in IDCS selecting IDCSGroups and IDCSUsers to copy entries from these branches. This is depicted in diagram 5 and diagram 6 below:

diagram5

Diagram 5: AD Users and Groups to be copied and synchronised

diagram6

Diagram 6: Attributes Mapping

  • Step 4: Set the import frequency and Authentication settings to enable local authentication for delegated authentication. This is depicted in diagram 7 below:

diagram7

Diagram 7: Enabling Local Authentication

  • Step 5:  Activate Delegated Authentication from Delegated Authentication tab under Security settings. This is depicted in the diagram 8 below:

diagram8

Diagram 8: Activating delegated authentication

  • Step 6: Add an application Office365 from the application catalog in IDCS and configure it to provision users and synchronise users into Office365. This is depicted in the diagram 9 below:

diagram9

Diagram 9: Adding and configuring Office365 application in IDCS

  • Step 7: Add a new user called Steve Stroud enrolling him in the ‘Employees’ group and assigning him an email sstroud@idcsdemos.com. This is depicted in the diagrams 10, 11, 12 and 13 below:

diagram10

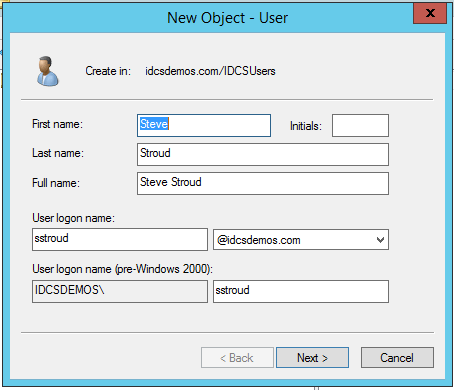

Diagram 10: Creating Steve Stroud in AD

diagram11

Diagram 11: Steve Stroud created under IDCSUsers

diagram12

Diagram 12: Assignment of email address

diagram13

Diagram 13: Assignment of group – Employees

diagram14

Diagram 14: Creation of user Steve Stroud in IDCS

  • Step 9:  Steve Stroud assignment of Employees group in IDCS is because he is in Employees group in AD. The Employees group is associated with Office365 application in IDCS. Therefore, Steve is associated and provisioned in Office365. This is depicted in diagram 15, 16, 17, 18 and 19 respectively:

diagram15

Diagram 15: Steve Stroud is enrolled in Employees group

diagram16

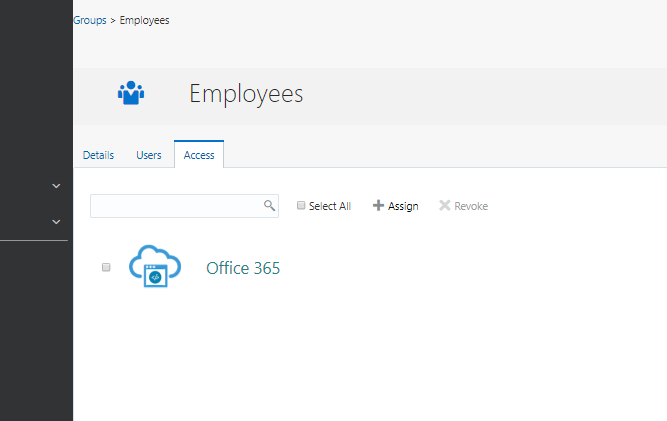

Diagram 16: Employees group access to Office365


Diagram 17: Steve is associated with Office365 in IDCS

diagram18

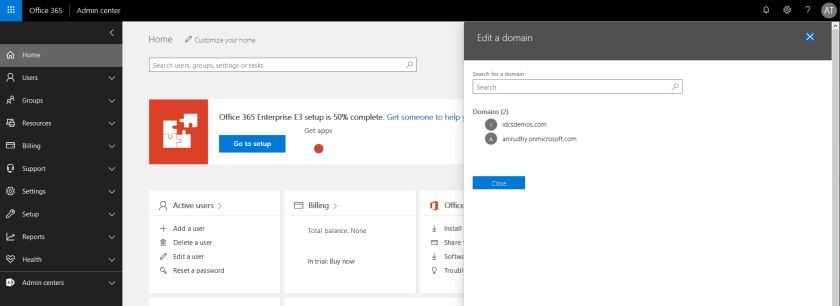

Diagram 18: Admin logging in to check Steve Stroud provisioning into Office365

diagram19

Diagram 19: Steve Stroud provisioned into Office365

  • Step 10: Finally, Steve Stroud wants to access Office365 account over the internet by visiting http://www.office.com website. In the login challenge Steve puts his Enterprise domain email userid. This is depicted in the diagram 20 below:

diagram20

Diagram 20: Steve Stroud using his enterprise userid for logging into office.com

  • Step 11: Office365 being a service provider directs the login to Oracle IDCS for authentication. Steve supplies his Corporate AD password to Oracle IDCS login dialog and gets into Office365 account. Oracle IDCS delegates authentication to Active Directory to authenticate Steve. This is depicted in the diagram 21 and diagram 22 below:

diagram21

Diagram 21: Steve Stroud has been directed to Oracle IDCS for authentication

diagram22

Diagram 22: Steve gets into Office365 application
