Oracle Cloud Infrastructure – Page 7

Triggering an OIC integration via OCI Events – the Oracle Functions Approach

In a two-part blog series I am exploring the available options in triggering an Oracle Integration Cloud (OIC) integration whenever a resource state change occurs within Oracle Cloud Infrastructure (OCI). One example of this event based pattern is the ability to trigger an OIC integration as soon as a file is uploaded to OCI Object Storage, thereby removing the need for any scheduled based integrations that rely on file polling.

In my previous blog, I provided some context and background on the OCI Event service and the available options that we have in triggering an OIC integration. Namely these are the OCI Notifications, Functions, and Streaming services. My previous blog also explored the first of these patterns, and detailed how this event based pattern can be achieved using the OCI Notification Service. In this follow up article I will cover how we can use Oracle Functions to achieve the same outcome.

OCI – Oracle Container Engine for Kubernetes (OKE) – Using Client Certificates and RBAC

Kubernetes has been proven the best way that we have today to run microservices deployments, whether it is via a Serverless approach or by managing your own deployments in the cluster. This has solidified with the strong adoption of Kubernetes by all the major Cloud Vendors, as the strategic way to orchestrate containers and run serverless functions.

However, one of the situations that we need to be mindful, is that kubernetes creates by default a super powerful user that has full access to almost every resource in the cluster (accessible via kubectl or directly though APIs). This is very convenient for most dev & test scenarios, but it is imperative that for production workloads, we limit such power and use Role Base Access Control (RBAC), stable since version 1.8, for fine-grained authorisation access control to kubernetes cluster resources.

For the purpose of this demo, I am assuming some familiarity with Kubernetes and kubectl. I will mainly focus on the Authentication and Authorisation aspects that allow us to use Client certificates to get access to protected resources in a Kubernetes cluster.

In a nutshell this is what I am going to do:

Create and use Client certificates to authenticate into a Kubernetes cluster
Create a Role Base Access Control to fine grain authorise resources in the Kubernetes cluster
Configure kubectl with the new security context, to properly limit access to resources in the Kubernetes cluster.

This is a super simplified visual representation:

Continue reading “OCI – Oracle Container Engine for Kubernetes (OKE) – Using Client Certificates and RBAC”

OCI – Remote Peering 2 Virtual Cloud Networks across different Regions

In a previous blog, I explained how to local peer two Virtual Cloud Networks (VCNs) located in the same Region. In this blog, I am going to show you how you can remote peer two VCNs located in different Regions. You might want to use this approach for High Availability or Disaster Recovery scenarios or simply to interconnect private workloads across multiple regions. In order to remote peering 2 VCNs, we are going to use a new type of Networking Gateway in Oracle Cloud Infrastructure, called Dynamic Routing Gateway (DRG). It is important to mention that the communication between the 2 regions does not route over the Internet, but via a dedicated network pre-established private fast connection/backbone, so the communication is secured and low latency. Just for the record, DRGs are the same type of gateways that you would use to establish connectivity between any other Data centres (e.g. on-premise DC or other Cloud providers, e.g. AWS, MS Azure, GCP), as well as to establish IPsec VPN connections or during a dedicated Fast Connect Private Peering communication, but that would be another blog.

For this demo, we are going to connect workloads between Phoenix and Ashburn. Each region will have its own VCN and within each VCN we are going to deploy a private subnet with 1 Linux VM, used to test the inter-communication across the regions.

For the purpose of this demonstration, I am going to show how to:

Attach and configure DRG to each of your VCNs, located in different regions and establish the remote peering.
Configure 2 private VMs, each in a different VCNs (different AD)
Use public bastion host to connect to 1 of the private VMs and then confirm connectivity into the other private VM (cross-region connectivity).

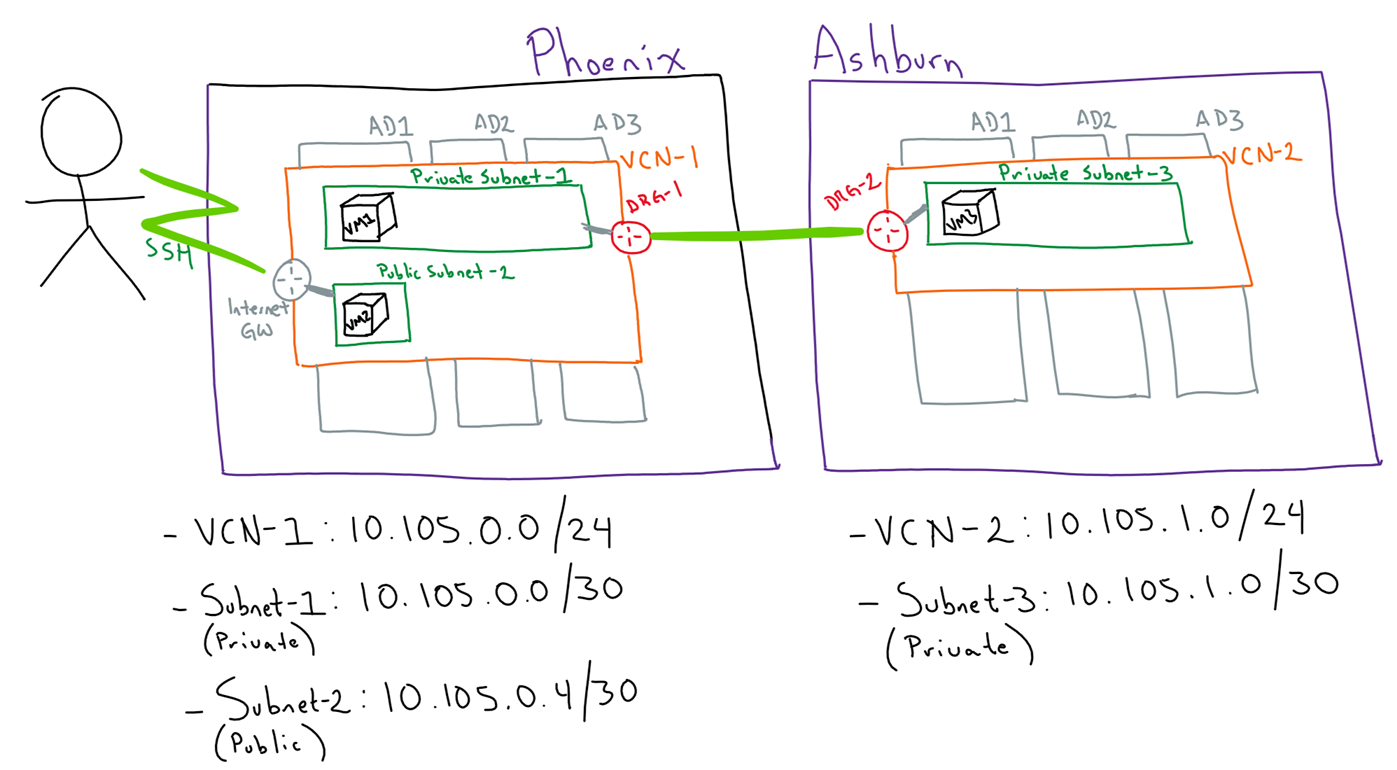

This is a high-level visual representation:

Ok, let’s have fun!!!

Continue reading “OCI – Remote Peering 2 Virtual Cloud Networks across different Regions”

Enabling REST APIs to consume data from Oracle Autonomous Databases (ADW/ATP)

In a previous blog, I showed how to develop microservices to connect to Autonomous Databases and consume data (read/write) via REST APIs. Although I still highly recommend that approach, the reality is that there is an easier way to do it using Oracle REST Data Services modules that come included with any Oracle Autonomous Database (ADW/ATP).

This way you simply have to:

Configure the API endpoint (Method + URL) that you want to expose as a REST API
Define the underlying SQL statement that will serve to your endpoint (i.e. SELECT, INSERT, UPDATE, DELETE statements or a more complex PL/SQL script)
Define the security mechanism to properly protect your APIs

That’s pretty much it, this should be a very quick, yet powerful alternative to building your own microservices to consume data from Autonomous DBs.

Continue reading “Enabling REST APIs to consume data from Oracle Autonomous Databases (ADW/ATP)”

Calling OCI APIs from Postman

Oracle’s Cloud Infrastructure has been designed in an API-first manner, which is awesome for all sorts of infrastructure automation tasks. It also implements an interesting API security model, in which all requests must be signed using a private key, associated with a public key which has already been configured in OCI (here, the developers are showing their infrastructure roots, as this echoes how SSH Auth is normally handled). The documentation of this model provides sample code in a number of languages, which is perfect if you are writing automation scripts, but is a little inflexible for ad-hoc testing. Typically I much prefer to use a rich graphical REST client, such a Postman, so that I can easily tweak my parameters and try out different types of calls before I write any code. Unfortunately while Postman is well equipped for Basic and Token based Auth, HTTP-Signature is not natively implemented, and rather than abandon Postman for a new tool, I set out to implement it using Postman’s powerful scripting capabilities. In this blog post I provide the result of this, which is a downloadable collection which provides all of the required scripts, and discuss the approach used.

OCI – Local Peering 2 Virtual Cloud Networks across different Availability Domains in the same region

In a previous blog, I explained how to get started with Oracle Cloud Infrastructure Networking primitives to allow Internet traffic into your Virtual Cloud Network. In this blog, I will show you how to peer 2 different Virtual Cloud Networks (VCNs), using VMs across different Availability Domains (AD) in the same region. For this, we are going to use a new type of OCI Networking Gateway, called Local Peering Gateway (LPG).

In Oracle Cloud Infrastructure, VCN are regional and subnets can be configured as regional resources too. This means that they can span across multiple Availability Domains within the same region (normally 3 ADs per region). For this demo, we are going to provision a private VM in a different Availability Domain (AD), each in a different VCN, so that we can make sure that we can establish connectivity across 2 VMs located in different VCNS and Ads, via the Local Peering

For the purpose of this demonstration, I am going to show how to:

Attach LPG to each of your VCNs in the same region and establish the local peering.
Configure 2 private VMs, each in a different VCNs (different AD)
Use public bastion host to connect to 1 of the private VMs and then confirm connectivity into the other private VM.

This is a high-level visual representation:

Ok, let’s have fun!!!

Continue reading “OCI – Local Peering 2 Virtual Cloud Networks across different Availability Domains in the same region”

Enhance the security of your website with Oracle Cloud Infrastructure’s Web Application Firewall

Oracle recently introduced a Web Application Firewall (WAF) to further enhance and secure Oracle Cloud Infrastructure offerings. The Oracle Cloud Infrastructure WAF is based on Oracle Zenedge and Oracle Dyn technologies. It inspects all traffic destined to your web application origin and identifies and blocks all malicious traffic. The WAF offers the following tools, which can be used on any website, regardless of where it is being hosted:

Origin management
Bot management
Access control
Over 250 robust protection rules that include the OWASP rulesets to protect against SQL injection, cross-site scripting, HTML injection, and more

In this post, I configure a set of access control WAF policies to a website. Access control defines explicit actions for requests that meet conditions based on URI, request headers, client IP address, or countries and regions.

Continue reading “Enhance the security of your website with Oracle Cloud Infrastructure’s Web Application Firewall”

Media Capture using Oracle Visual Builder for Facial Recognition App

Recently I built a Facial Recognition Mobile App using Oracle Visual Builder having set up the Facial recognition APIs using Tensorflow taking some inspiration from FaceNet. As highlighted above the app does the following: record a video of your face and send it to the API that generates various images and classifies them based on the label we provide at runtime. And in turn, invoke another API that is going to train the machine learning model to update the dataset with the new images and label provided. These two APIs will build a facial recognition Database. Once I have this, I can capture the face and compare that with the dataset I have captured earlier in my Facial recognition Database to output if the face exists in our system.

Continue reading “Media Capture using Oracle Visual Builder for Facial Recognition App”

Why we must cede to our robot overlords (to do the dull stuff)

Can I get a show of hands – whose spine shudders at the sound of their own phone ringing? If your hand is up, chances are a component of your role (or role in days gone by… the scarring can be permanent) involves operations. Day or night, it’s that dread associated with wondering “What now?”. A few years back, enterprise started outsourcing the problem of supporting key business systems to 3rd party services, and while this reduced the quantityof calls, it only served to increase the quality – now when the phone rings at 3am, you know things are bad. Real bad.

Getting started with OCI Traffic Management

Over the past week, Oracle has soft-launched a range of new services that leverage the capabilities of our Dyn investment to offer a significant enhancement to the native Edge management capabilities of our second generation cloud. These services include:

Traffic Management Steering Policies
Health Checks (Edge)
Web Application Firewall

I’ll reserve my discussion on the Web Application Firewall for a later post, but what I’d like to discuss today is Traffic Management, and how it can be leveraged to deploy, control and optimise globally dispersed application services for your Enterprise.

Continue reading “Getting started with OCI Traffic Management”
